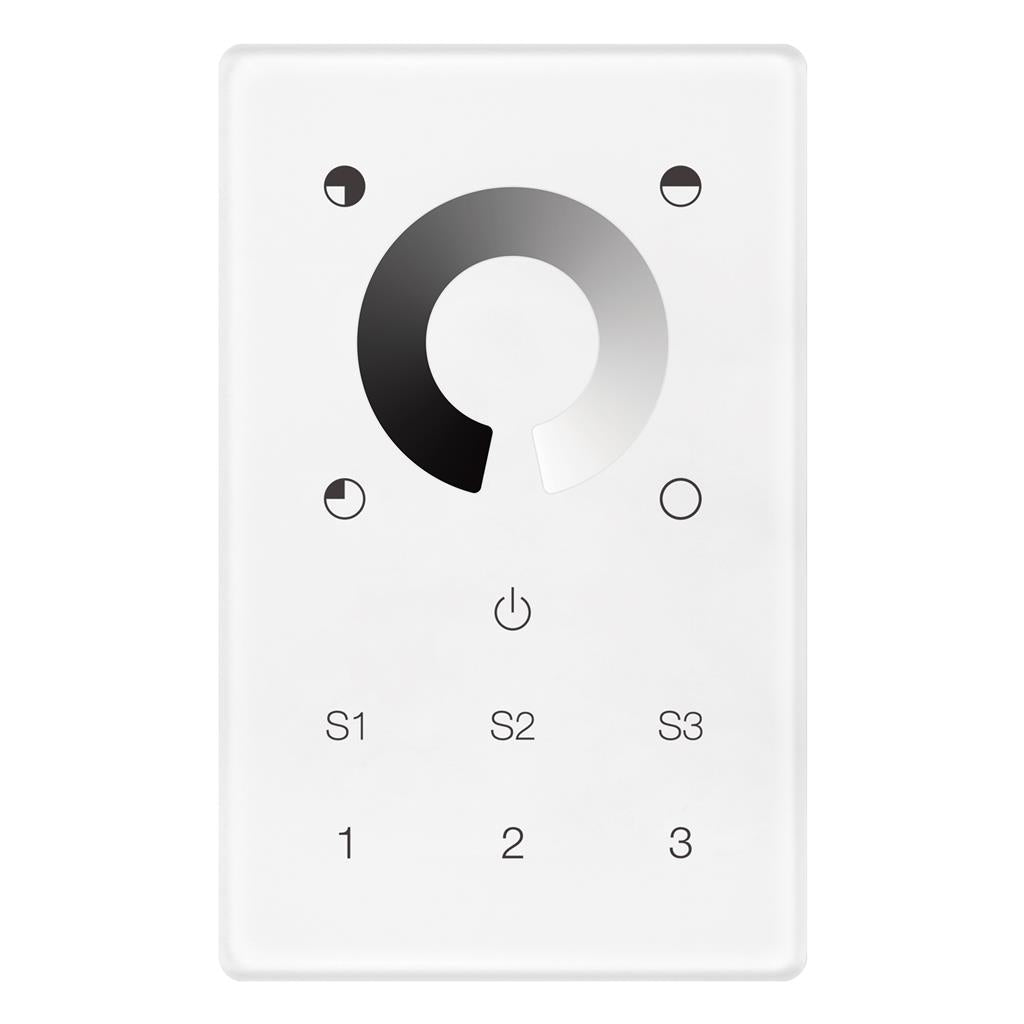

Cham Single colour AC Touch wall Control

The CHAM-TOUCH-1C is an RF + Bluetooth Single colour AC wall control that is to be used with the CHAM-BT-RF-5C receiver. The CHAM-TOUCH-1C wall control allows you to dim the LED strip, it also allows you to save specific scenes that you use on a regular basis.

Products To Be Used In Conjunction:

4-In-1 Universal 5 Channel Master Colour Controller: CHAM-BT-RF-5C

Variant: 20145 - Single Colour LED Touch Wall Control

• Type of Controller: RGBW Touch Wall Control
• Output Signal: RF + Bluetooth
• Dimming Range: 0.1% - 100%
• Colour: White Opal Glass
• Transmission Frequency: 2.4GHz
• Operating Temperature: 0°C to 40°C
• Power Consumption: <15mA

Specifications:

• Input Voltage (V): 240V AC

Dimensions:

• Cutout: (L) 70mm x (W) 44mm x (D) 20mm
• Overall: (L) 120mm x (W) 75mm x (D) 29.1mm
