Push Button Dimmer & Switch 5-350VA - DIM-TOUCH (350VA)

Product Description

Product Features:

• Soft start

• Overload protection& short circuit protection
• Easy to mount in most Australia plates

• Suitable for dimming dimmable LEDglobes, incandescent globes, high voltage halogen globes, electronic transformers with low voltage halogenglobes
• Long press dimming button to dim
• Short press dimming button to on/off

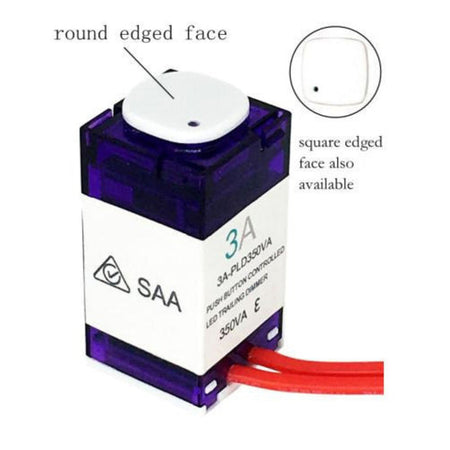

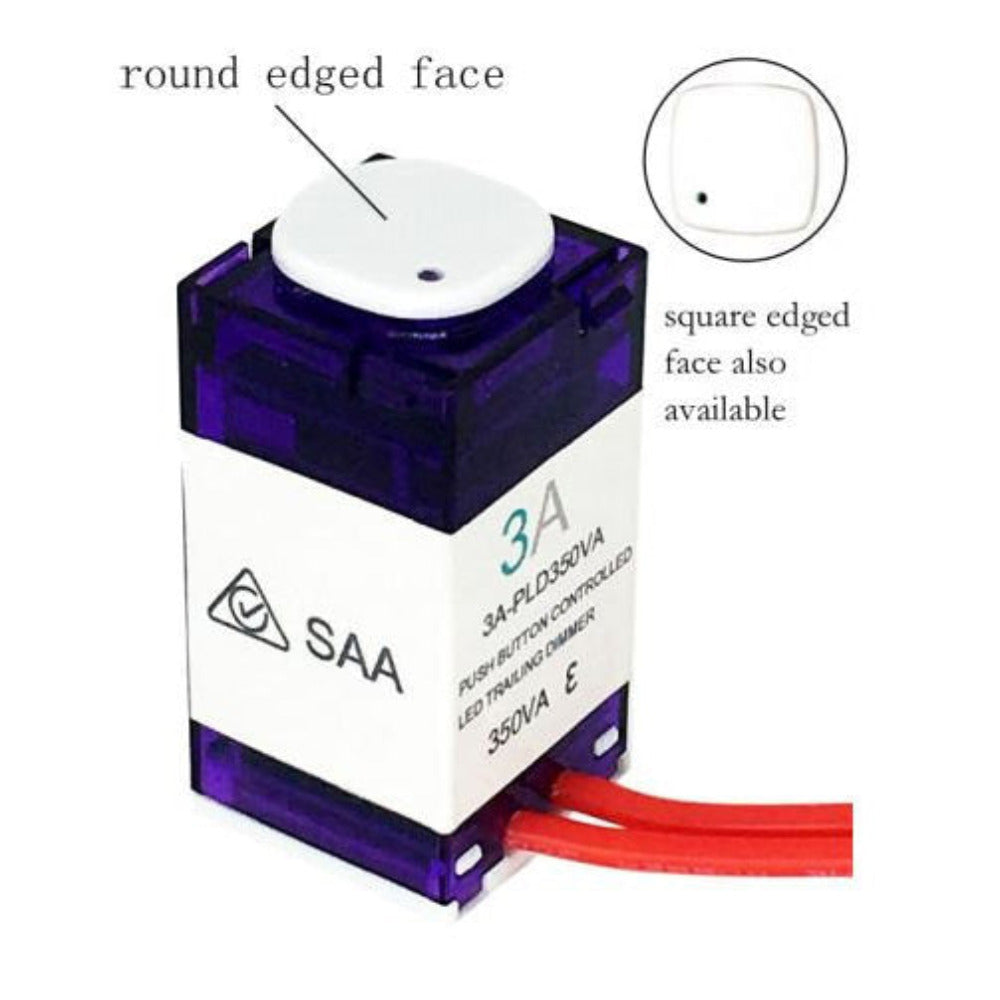

• Comes with 2 face caps round & squareedgedtosuitmost Australia plates
• Minimum brightness setting

• Remove the top cap
• Long press programming button until LED flashes slowly
• Long press dimming button to set level
• Double press dimming button to exit programming mode

• Maximum brightness setting

• Remove the top cap
• Long press programming button until LED flashes short press programming button, until LED starts to flash fast
• Long press dimming button to set level
• Double press dimming button to exit program mode

Technical Details:

• Operation Voltage: 240V
• Rated Power: 5-350VA
• IP rating: IP20
• Usage: Indoor

Dimensions:

• Width: 23.5 mm
• Height: 44.3 mm
• Length: 23.5 mm

Brand & Design:

• Brand: 3A
• SKU: DIM-TOUCH(350VA)


Warranty:

• 3-year replacement warranty
